SAWYER COLLABORATIVE ROBOT
    SAWYER COLLABORATIVE ROBOT SAWYER COLLABORATIVE ROBOT SAWYER COLLABORATIVE ROBOT SAWYER COLLABORATIVE ROBOT SAWYER COLLABORATIVE ROBOT

SAWYER COLLABORATIVE ROBOT

0 reviews 0 reviews
Enquiry only
Qty:
-
+
Brand: RETHINK ROBOTICS
Product Code: SAWYER-ROBOT

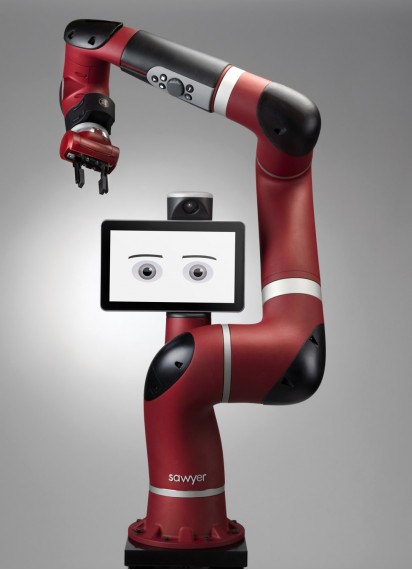

Sawyer is a single-arm, high-performance robot created to handle machine operation, circuit board testing and other precision tasks that have been challenging to automate with existing robots.

It is a smart, collaborative robot designed for a wide range of factory environments.

  • Collaborative Design – Designed to work alongside Humans
  • Single Arm with 7 degrees of freedom
  • Reach of 1.26m
  • Task Repeatibility Accuracy: +- 0.1 mm
  • Payload: 4kg
  • Multiple tasks achieved from attachments to the arm: Electronic Gripper, Vacuum Array
  • IP Rating: IP54
  • Safety by Inherent Design: Power and force limited compliant arm with series elastic actuators and embedded sensors
  • Mobile Pedestal for moving between multiple work stations



Weighing only 19 kg (42 lbs), Sawyer features 7 degrees of freedom with a 1260 mm meter reach that can manoeuvre into the tight spaces and varied alignments of work cells designed for humans.  Its compliant motion control allows it to “feel” its way into fixtures or machines, even when the position varies slightly.  This enables our adaptive repeatability that is unique in the robotics industry and allows Sawyer to work precisely (+/- .1 mm) in semi-structured environments, while operating safely next to human co-workers.



Sawyer offers an embedded vision system, with a head camera for wide view applications and a Cognex camera in its wrist that enables the Robot Positioning System and eventually many other complex vision tasks.


Sawyer offers a unique combination of features that distinguish it from other conventional and collaborative robots, including compliant motion control, embedded vision with a built-in Cognex camera and Rethink’s Robot Positioning System, a component of the proprietary and industry-leading Intera software platform.

Powering both Sawyer and Rethink’s first collaborative robot, Baxter, the Intera system makes deploying the robots far easier than typical industrial robots. While traditional robots typically take an average of 200 hours to program and deploy, Sawyer can be deployed in under two hours and can easily be trained by typical factory technicians – not robot engineers.

Accessories

Vacuum Cup Grippers
Can be used to pick up a wide range of objects, especially if they’re smooth, non-porous or flat.  Connect directly to external air lines.

Electric Parallel Grippers
Allow Sawyer to pick up rigid and semi-rigid objects of many shapes and sizes.  Interchangeable fingers and fingertips maximize flexibility.

Mobile Pedestal
Optional rolling pedestal with industrial grade casters makes it easy to move Sawyer quickly and safely between workstations.



Applications and DataSheets

Sawyer Data Sheet

Sawyer Data

Sheet

Test Inspection Packaging Molding





Metal

Loading &

 Unloading

PCB CNC



John Brooks is appointed by Impact Robotics as the New Zealand Reseller and Integrator of Rethink Robotics’ Sawyer & Baxter Collaborative Robots.
