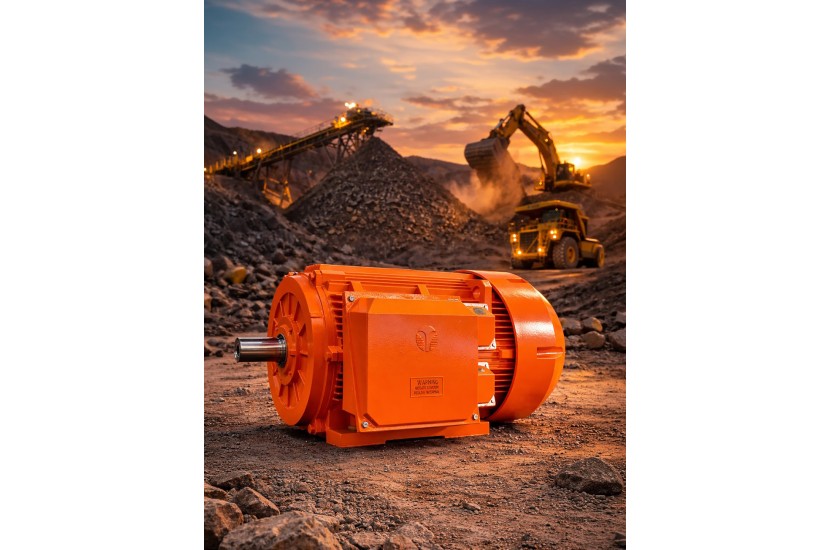

AC MOTOR MPX HIGH SPEC IE4 CAST IRON
$0.00
Ex Tax: $0.00
- Stock: In Stock
- Brand: TECHTOP
- Model: AC-MOTOR-MPX-HIGH-SPEC-IE4-CAST-IRON
Description
Introducing the MPX Series, a refined evolution in electric motor technology. Engineered to IE4 efficiency and built with every essential feature included as standard, the MPX delivers dependable performance and long‑term value in even the most demanding applications.
Surface Finish:
MPX motors are subject to a two pack epoxy coating system with the final colour being RAL 2008 Bright Red Orange.
MPX series motors are designed with the following parameters:
- 380V to 415V, 50Hz & 440V to 480V 60Hz supply
- Continuous (S1) duty
- Ambient temperatures up to 50°C
- Installation up to 1000 MASL
- Service factors up to 1.25
Available options
- Insulated bearing & earth brush
- Force ventilation
| Frame Size | |||||
| Specification | 160 - 200 | 225 - 250 | 280 | 315 | 355 |
| Class H | YES | YES | YES | YES | YES |
| IP66 | YES | YES | YES | YES | YES |
| Open Bearings | YES | YES | YES | YES | YES |
| INPRO Labyrinth seals | YES | YES | YES | YES | YES |
| Oversized Terminal Box | YES | YES | YES | YES | YES |
| Auxiliary Terminal Boxes | YES | YES | YES | YES | YES |
| Alarm Thermistor | YES | YES | YES | YES | YES |
| Trip Thermistor | YES | YES | YES | YES | YES |
| Fan - Cast Iron | YES | YES | YES | YES | YES |
| Cowl - Cast Iron | YES | YES | YES | YES | YES |
| Porous drain plug | YES | YES | YES | YES | YES |
| Aux T/Box | YES | YES | YES | YES | YES |
| Stainless Name Plate | YES | YES | YES | YES | YES |
| Conduit Entry | YES | YES | YES | X | X |
| Steel Gland Plate | X | X | X | YES | YES |
| Epoxy Paint | YES | YES | YES | YES | YES |
| Shaft Material - 4140 | YES | YES | YES | YES | YES |
| Heaters | X | YES | YES | YES | YES |
| Vibration Stud | YES | YES | YES | YES | YES |
| Bearing & winding RTD's | X | X | X | YES | YES |
