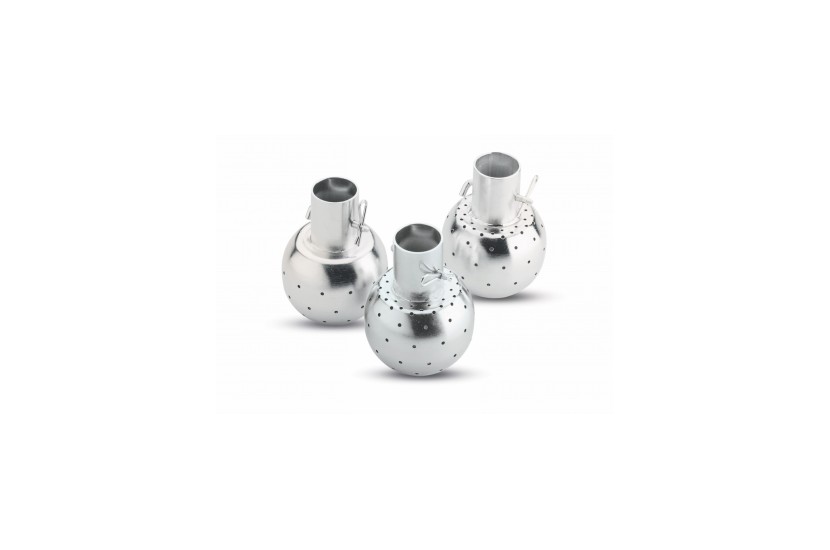

SPRAY BALLS

Spray balls are used for the cleaning process of storage tanks in dairies, breweries, the food industry etc. The standard design is a pressed ball made of a stainless-steel sheet, available with diameters of both 64 and 94mm. The CIP supply pipe is connected to the socket of the spray ball by means of a locking pin. The socket is dimensioned for ISO or DIN tubes. The spray ball has a flat shoulder with holes to enable thorough cleaning of the supply pipe.

Features

• 64mm to 94mm spray ball size
• Available in 2 or 3mm
• A range of spraying patterns available: Spray patterns to either the bottom, top, or all over
• Socket is dimensioned for ISO or DIN tubes
• Built with 316 stainless steel

Benefits

• Allows process equipment to be clean in place (CIP)
• No moving parts, ensuring reliability and no regular maintenance
• Ideal for applications that require less demanding cleaning duties
