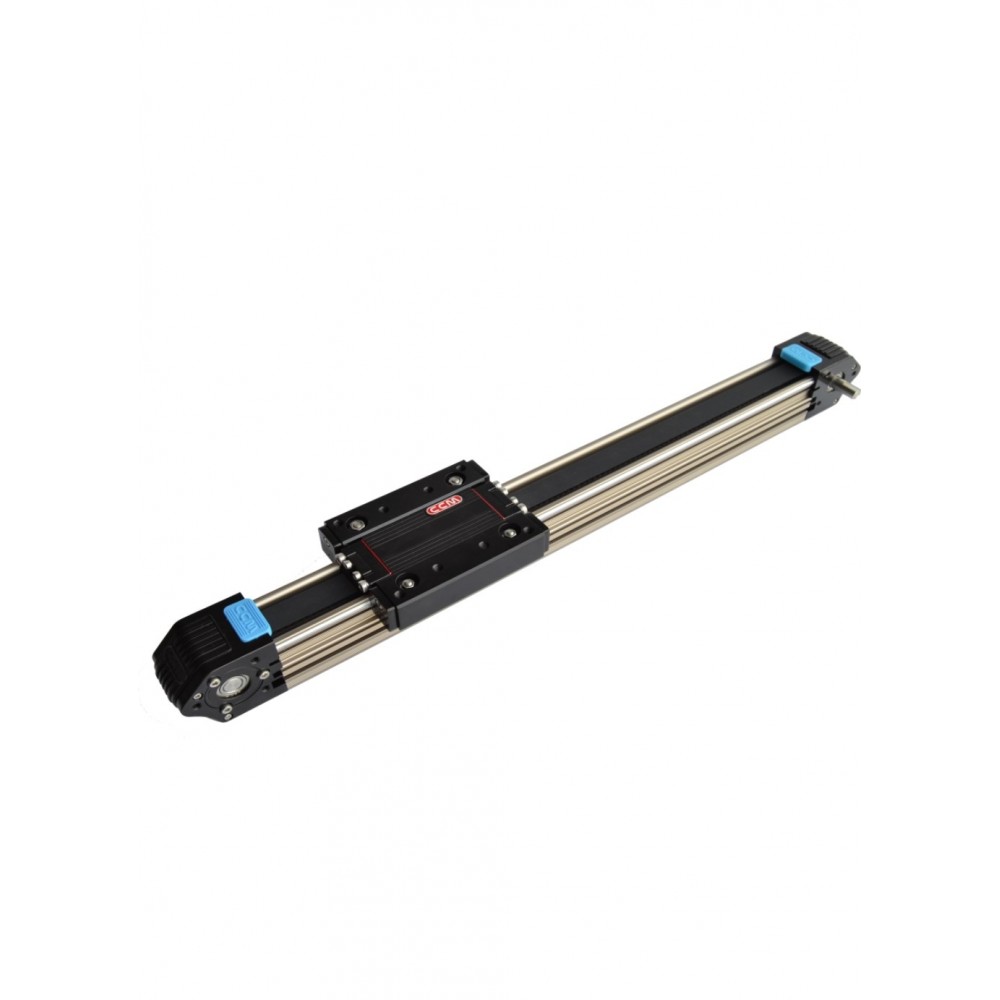

HIGH PRECISION TIMING BELT ACTUATORS

John Brooks can provide a range of high precision timing belt actuators, with the products available within the following specifications:

• Guide Width between 40mm to 60mm
• Max Load between 6kg and 35kg
• Pitch between 75mm and 95mm
• Torque between ≤3NM and ≤6NM
• High Precision: Positional Repeatability ≤0.05mm
