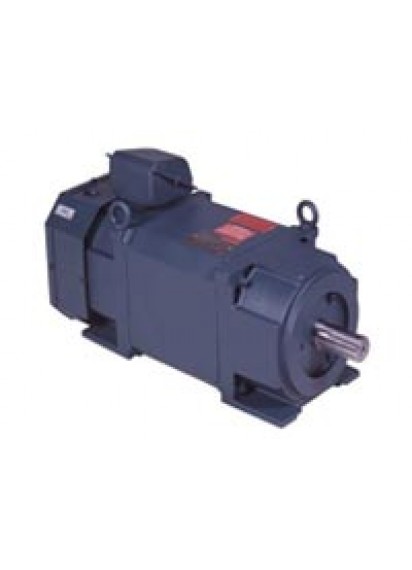

RELIANCE RPM AC DPG-FV

RELIANCE RPM AC DPG-FV

0 reviews 0 reviews
$ POA
Brand: RELIANCE
Product Code: RPM AC DPG-FV

Drip-Proof Guarded Force Ventilated The RPM AC DPG-FV is the ultimate power dense machine. Utilizing laminated square frame technology, up to 1000 horsepower can be packed into a 440 frame. Commonly used in some of the most demanding industrial applications such as paper and converting, steel processing, extruders, traction, or oil well drilling, the RPM AC force ventilated design is the motor of choice.

  • The most compact and lowest weight designs for applications to 756kW.
  • Vector performance & Continuous constant torque from zero speed to base speed
  • 150% maximum overload torque from zero speed to base speed for 1 minute.
  • High torque to inertia ratio “ up to 80% less inertia than the corresponding standard NEMA frame motor.
  • Class H insulation standard on most ratings.
  • Encoder mounting provisions.
  • Thermal protection.
  • Insulated ODE bearing on 440 frames.
  • Top or side mount blower construction.

TEFC and Blower Cooled Designs For applications requiring totally enclosed protection, RPM AC motors are available in non-ventilated, fan cooled and in-line blower cooled construction. The totally enclosed family is designed with finned construction through the 250 frame to offer the industry's most efficient cooling and power density designs. The 210 and 250 laminated steel finned frame motors are an exclusive patent pending design offered only by Reliance Electric brand motors.

  • Small compact power density design .
  • Vector performance & Continuous constant torque from zero to base speed greater than 1000:1 turn down.
  • 200% maximum overload torque from zero speed to base speed for 1 minute.
  • 2:1 constant horsepower above base speed on most ratings.
  • Capable of very high speeds due to compact low inertia designs.
  • Class H insulation standard on most ratings.
  • Available in full IEC metric construction.
  • Encoder mounting provisions.
  • Thermal protection.
  • Insulated ODE bearing on 440 frames.
