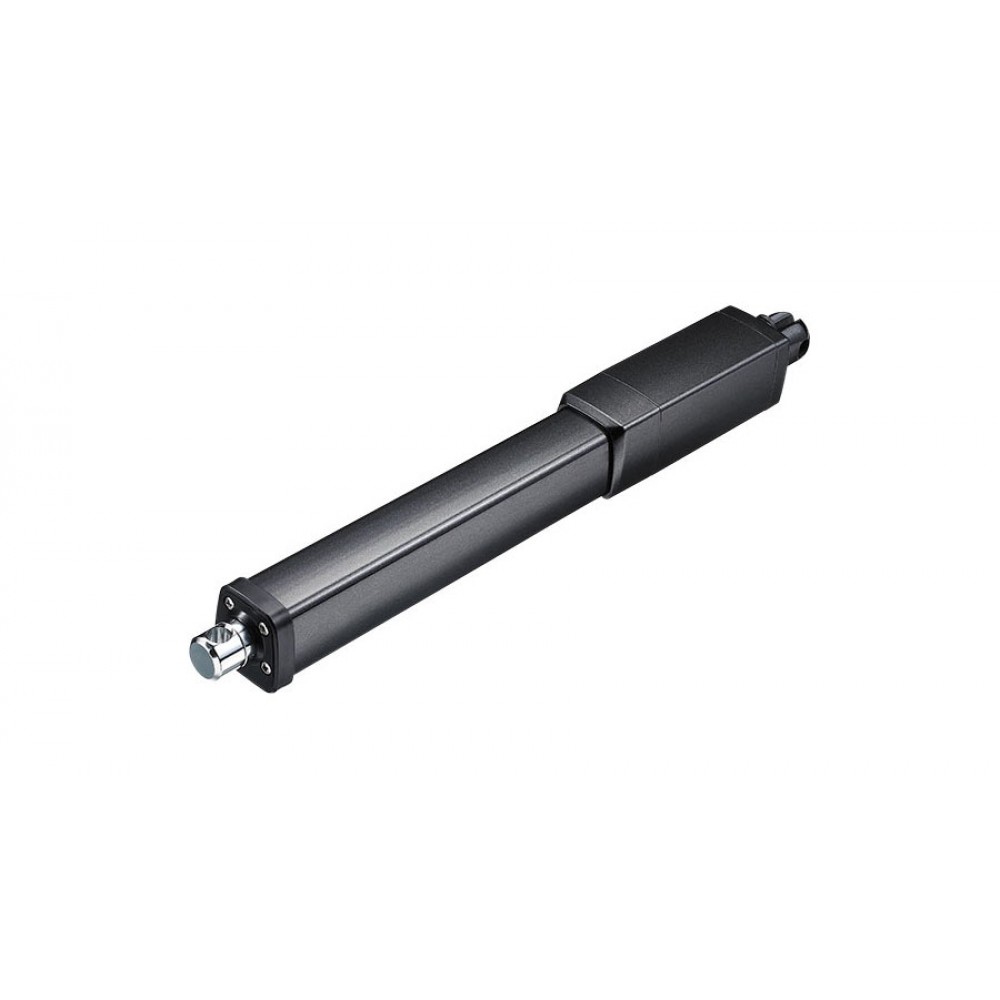

Inline Linear Electric Actuator IP69k

Electric linear actuators are a key technology for making automation smoother and more efficient.

John Brooks offers custom electric linear actuator products and kits to meet specific design requirements for many applications. This allows manufacturers to create higher quality end products.

Inline Linear Electric Actuator IP69k was specifically designed for industrial applications that require higher load and speed. Its IP69K protection ensures it will withstand high temperature, high pressure water jets, and the ingress of dust and other solid contaminants.

For synchronisation and position feedback, it can be equipped with Hall sensors.

General Features

• Max. load: 4,500N (push); 3,000N (pull)
• Max. speed at max. load: 2.5mm/s
• Max. speed at no load: 27.5mm/s
• Retracted length: ≥ Stroke + 289mm
• IP rating: IP69K
• Certificate: UL73
• Stroke: 20~1000mm
• Output signals: Hall sensors
• Voltage: 12/24V DC; 12/24V DC (PTC)
• Color: Black, grey
• Operational temperature range: -5°C~+65°C
• Operational temperature range at full performance: +5°C~+45°C
• Storage temperature range: -40°C~+70°C

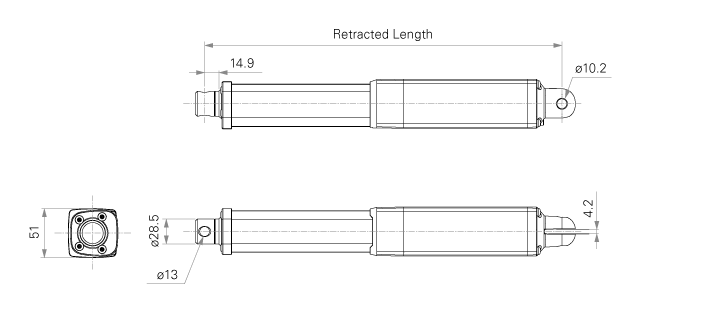

Standard Dimension (mm)
