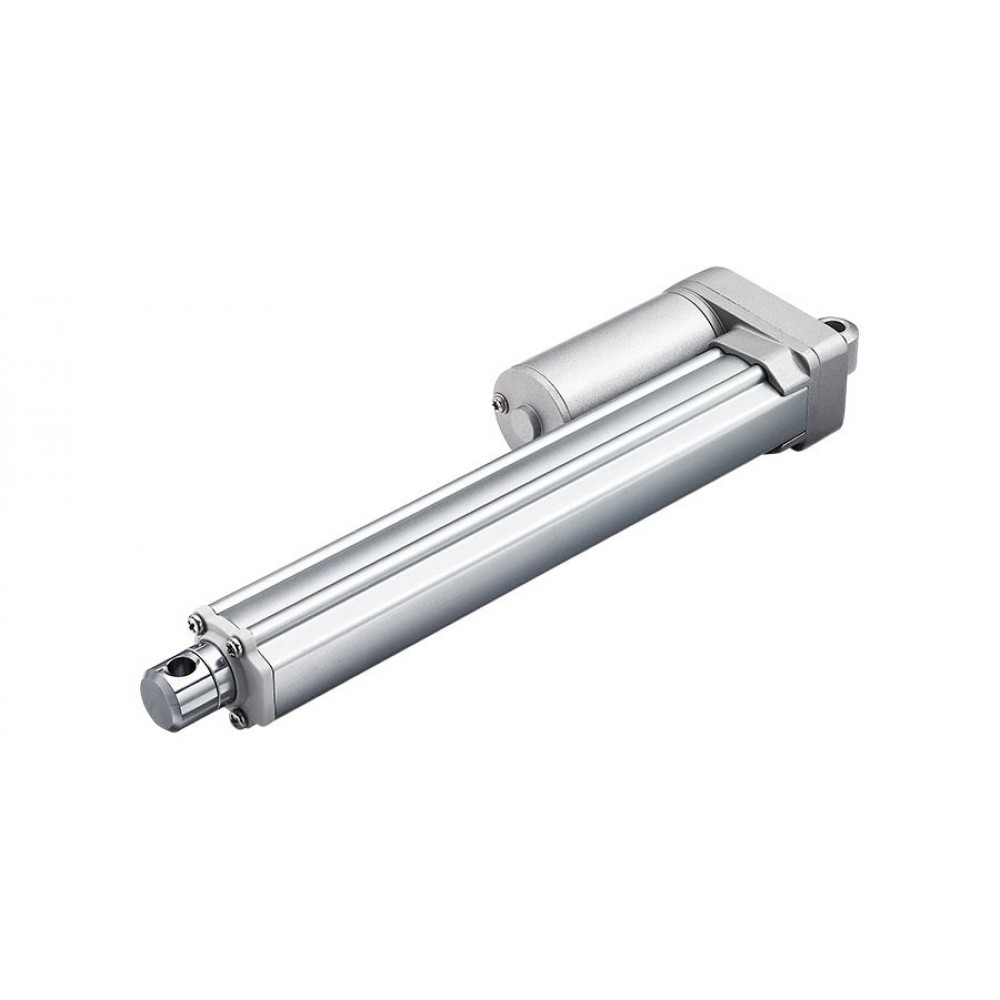

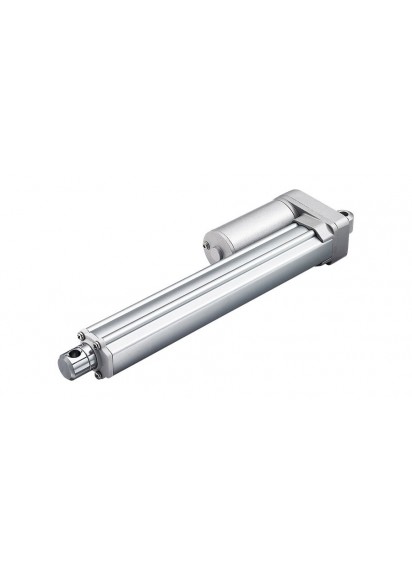

Compact Linear Electric Actuator IP66

Here at John Brooks we pride ourselves in providing high-quality electric linear actuators that add automation to products and equipment easier than ever before. Our product selection offers customisability to meet specific design requirements for a variety of applications. This way, manufacturers can create the best end product possible without having to worry about whether the technology will meet their needs, because we've got them covered.

Compact series linear actuator are robust and capable of performing well in certain outdoor environments. This type of electric linear actuator is perfect for use in small spaces where force or capability cannot be sacrificed. Options include feedback sensors, signal sending limit switches and 90 degree clevis mounting. Industry certifications for it include IEC60601- 1, ES60601-1, and EMC.

General Features

• Max. load: 1,000N (push/pull)
• Max. speed at max. load: 7.6mm/s
• Max. speed at no load: 67.5mm/s
• Retracted length: ≥ Stroke + 105mm (without output signals)
• IP rating: IP66D
• Certificate: IEC60601-1, ES60601-1, EMC
• Stroke: 20~1000mm
• Output signals: POT, Reed, Hall sensors
• Voltage: 12/24/36/48V DC; 12/24/36/48V DC (PTC)
• Color: Silver
• Operational temperature range: +5˚C~+45˚C (Load < 500N); -25˚C~+65˚C (Load ≧ 500N)
• Operational temperature range at full performance: +5°C~+45°C

Standard Dimension without Output Signals (mm)

​

Standard Dimension with Output Signals (mm)

​
