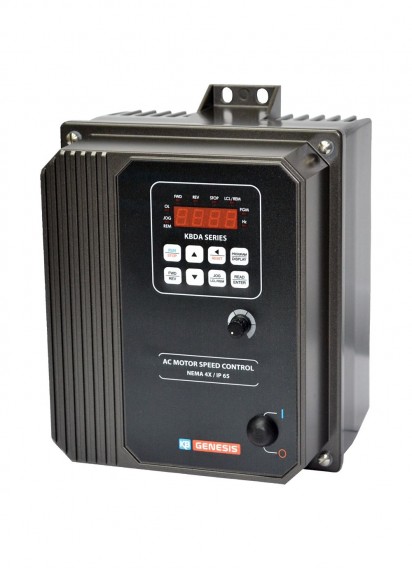

9661 KBDA-48 3.7kW AC IP65 & IODA Control (Gray)

9661 KBDA-48 3.7kW AC IP65 & IODA Control (Gray)

Home » Brand » KB ELECTRONICS » 9661 KBDA-48 3.7kW AC IP65 & IODA Control (Gray)
0 reviews 0 reviews
NZ$855.48
NZ$1,710.95
Ex Tax: NZ$743.89
Qty:
-
+
Add to Cart Enquire
Brand: KB ELECTRONICS
Product Code: ECKBDA48
Availability: 11
Units (measured and sold): EACH
KBDA-48 variable speed controller for industrial motors.

The KBDA-48 does not require fans or special environmental consideration when installing. It will drive motors from 0.75kw to 2.2kw. The technology is enclosed in a robust, IP65 wash down, fully epoxy-coated metal box designed to conform to international directives limiting environmental electro-magnetic interference.


Features & Benefits

• Horsepower 0.75kw to 2.2kw
• Starting torque 200%
• Designed and made in the USA
• Washdown and Watertight
• Indoor/Outdoor Use
• Saves time – up and running in less than 10 minutes
• Overload protection prevents motor burnout for a longer lasting motor
• Energy Saving using variable speed
• Customisable



Technical Specifications

Maximum Load (% of current overload for 2 minutes)  150
Carrier, Switching Frequency (kHz)   8, 10, 12
Output Frequency Resolution (Hz)  0.06
Minimum Output Frequency to Motor (Hz) 0.3
Acceleration Time (Seconds)   0.1– 180.0
Deceleration Time (Seconds)  0.3 – 180.0
Speed Range (Ratio)   60:1
Speed Regulation (30:1 Speed Range, 0 – Full Load)  2.5
Stalled Motor Trip Time (Seconds)   6
Braking Regenerative  Regenerative
Operating Temperature Range (ºC / ºF)   0 – 40 / 32 – 104
Storage Temperature (ºC / ºF)  -25 – +85 / -13 – +185

Potential applications include:

• Actuators • Air Cleaners  • Amusement Rides • Ball
Pitching Machines  • Blowers  • Boat Lifts • Bowling Alley Lane Cleaners  • CNC  • Convey-
ors • Door and Gate Openers  • Drilling  • Duct Cleaners • Dumbwaiters  • Elevators and
Hoist • Exercise Equipment  • Fabric Processing  • Fans • Feeders  • Film Processing  • Floor
Cleaning • Food Processing  • Garment Cutting • Grinding and Polishing  • Hoppers  • Horse
Walkers • HVAC  • Indexers  • Irrigation  • Laminating • Lift Station Pumps  • Machine Tools •
Medical  • Milling  • Mixers  • Oven Conveyors • Packaging  • Paint Blenders, Shakers, and
Sprayers • Paper Handling  • Portable Equipment Used with GFCIs • Pottery Wheels  •
Printing • Pumps  • Range Hoods  • Sandblasting  • Saws • Sewing  • Stretch Wrap  • Tex-
tile  • Treadmills • Therapeutic Vibrators  • Washing Machines • Wave Soldering  • Web Processing
• Wheelchair Lifts • Whole House Vacuums and Attic Fans • Wire Feeders • Wood and Metal
Lathes and Cutters • Winders and Unwinders

PF_KBDA-48
Show on Web (Type) S
Web Category 1 PF_KBDA-48
Web Category 2 Clearance
Web Category 3 50%
