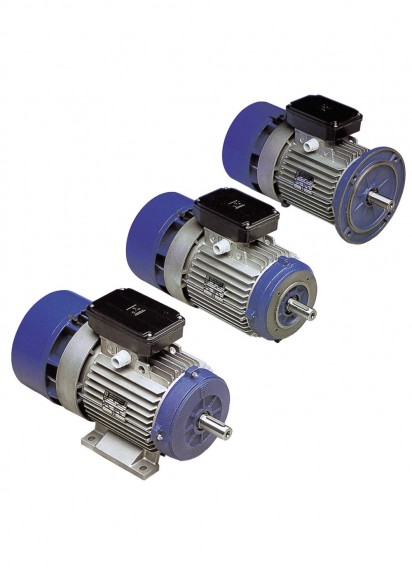

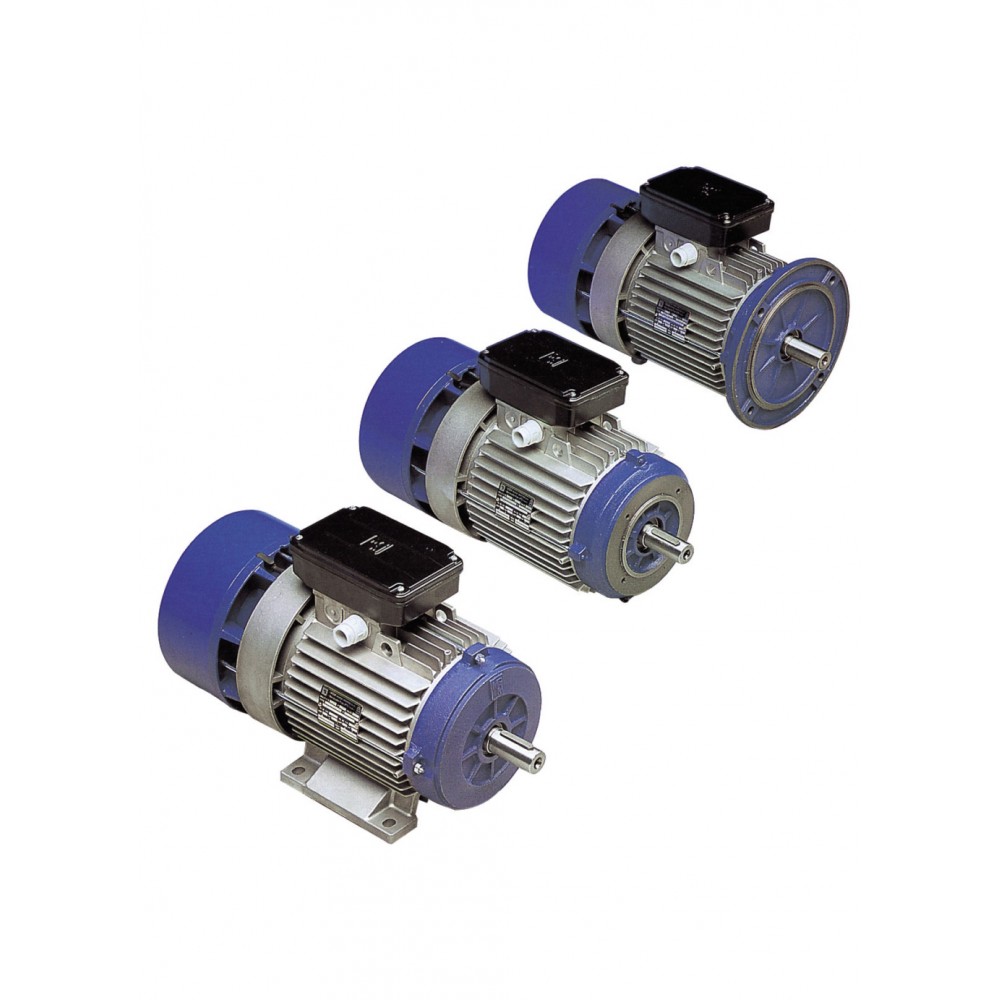

MGM BA AC MOTORS 415V 3PH BRAKE ALI SERIES

M.G.M. Motori Elettrici brake motors are designed and assembled as real electric brake motors: the perfect engineering and assembling combined with a strong and safe brake, make these motors very reliable.

The most popular brake motor with AC brake, with fast intervention times and high braking capacities. Also available in the version with DC brake.

BA-BAX series main features are a very quick braking action, both in realeasing and braking operation, a high brake torque, a constant braking time and a very high number of start/stop cycles also under severe applications.

• IEC Metric Motors from 71 to 315 frame size
• Totally Enclosed Fan Cooled (TEFC)
• Power range from 0,04 up to 132 kW. Single speed 2,4,6,8 pole o double speed 2/4,4/8, 2/8,2/6,2/12,4/6,4/12,4/16 pole
• BAX series includes single speed brake motors for continuous duty and IE2 / IE3 efficiency class (regulation EU 2019/1781). Alternatively the BA series can be made in the ‘Enhanced Power’ version for intermittent duty only
• IP 54 enclosure (IP55 on request)
• F class insulation
• AC or and DC Brake
• Very high and adjustable brake torque
• Heavy Duty Cycle
• Low Maintenance
• Aluminum frame up to 132 frame size, cast iron frame from 160 to 315 frame size
• Cast iron flanges starting from 100 frame size Motors with NEMA dimensioned shafts and flanges available on request
• The brake moving element and the brake coil have a laminated magnetic nucleus to reduce losses and to allow very fast brake
• The cooling fan is fitted between the motor and the braking assembly
• Manual brake release screw
• Hex hole on nondrive shaft end for manual rotation (on request starting from 160 frame size)
• cCSAus mark and compliance to efficiency rule EISA (CC051A) and NRC (on request)
• CCC mark and compliance to Chinese efficency rule and China Energy Label (on request)
• BIS certification – ISI mark (on request)
• EAC mark (on request)
• NOM mark (on request)
