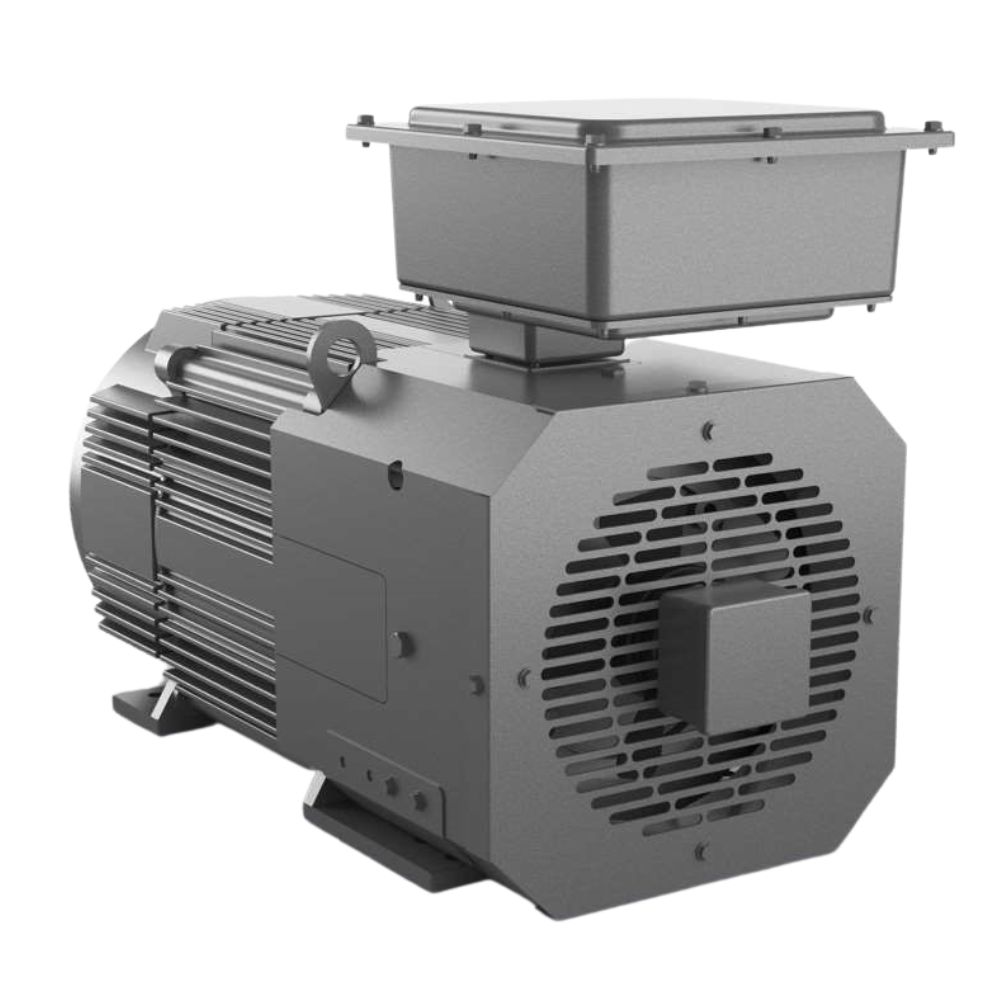

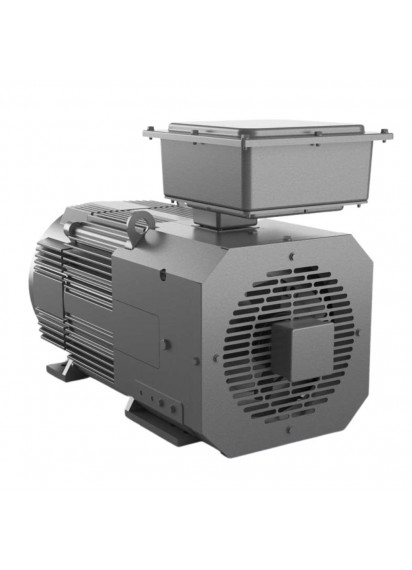

RELIANCE RPM AC Gen 3 motor

RPMAC Generation 3 motors address common challenges with AC Variable Speed applications, which require extra capabilities including constant torque down to zero speed, wide constant horsepower range, high response applications that require low inertia rotors, or high-speed capabilities. In these cases, the Generation 3 RPM AC motor is most suitable because it can handle tough variable speed industrial applications while also being powerful and compact.

RPM AC is a high-performance variable speed AC motor designed specifically to aid retrofitting of DC motors, and it is power-dense so it fits in spaces standard NEMA AC Motors just cannot.

FEATURES:

• Extensive HP range (up to 1750Hp or 1305kW)
• Square laminated steel frame
• Wide CT (constant torque) speed range is standard; wide CHP (constant Hp) is available
• Power Density:  up to 3 frame sizes smaller than traditional AC motors
• IPM rotor design delivers IE5 level efficiency
• Corona free insulation Class H
• Optimum pole design
• Thermal Protection 3 N.C. thermostats (1 per Phase)
• Integral shaft grounding brush included as standard
• Insulated bearing on ODE (RL5800 offers insulated bearing on both ends)
• PLS (Positive lubrication system)
• Wide variety of enclosures (DPFV, TEBC, TEAO-PB, TENV, TEFC)
• Oversize, rotatable mill conduit boxes
• Quick ship program available thru web-based configurator
• Provisions for ABB Ability condition monitoring
• QR code on nameplate for motor details and drive set-up information
