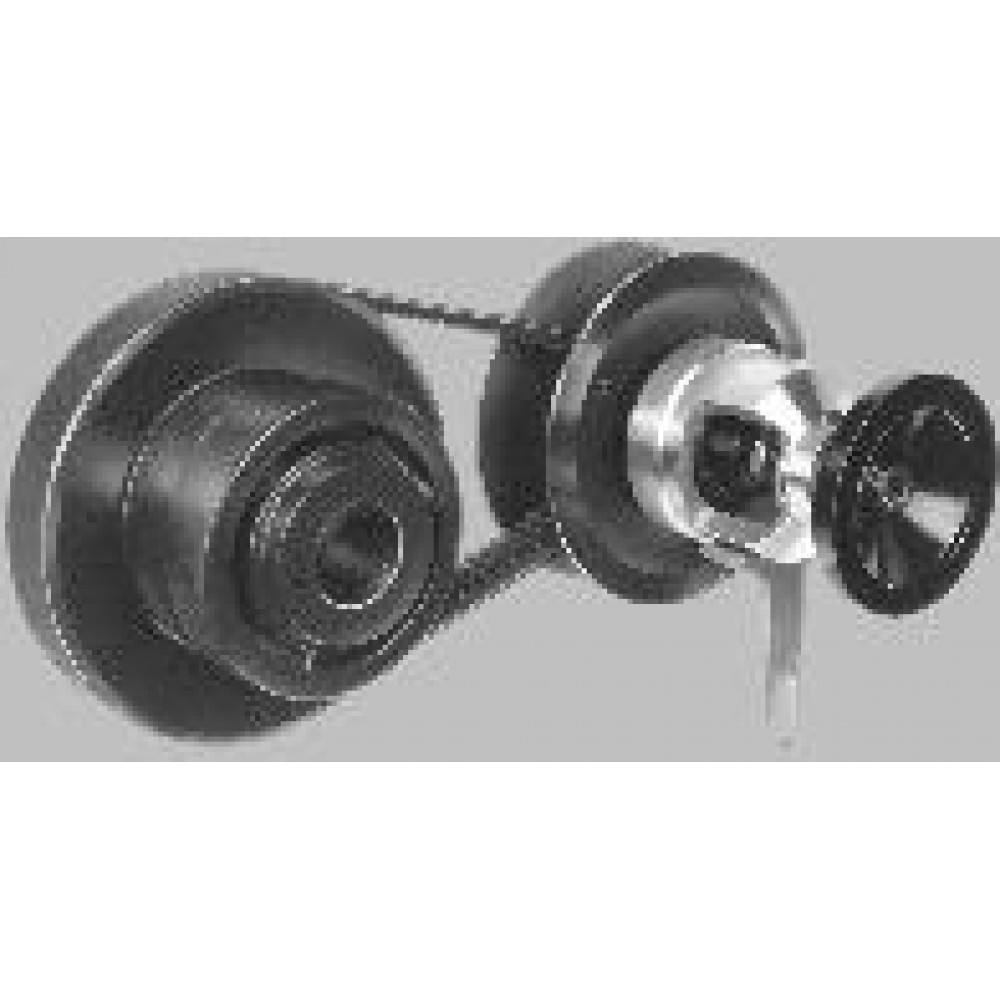

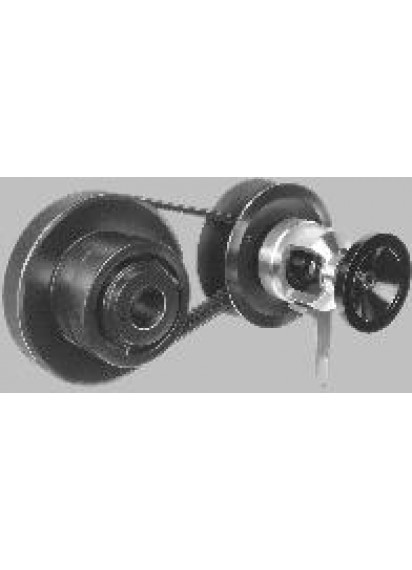

HILO Pulleys provides a simplified, economical and trouble free drive system.
Click on product name for further details.
|
HP at 1750 RPM |
HP at 1150 RPM |
Torque Capacity lb-in |
Model Number |
Max P.D. |
Min P.D. |
Ratio |
Belt Size |

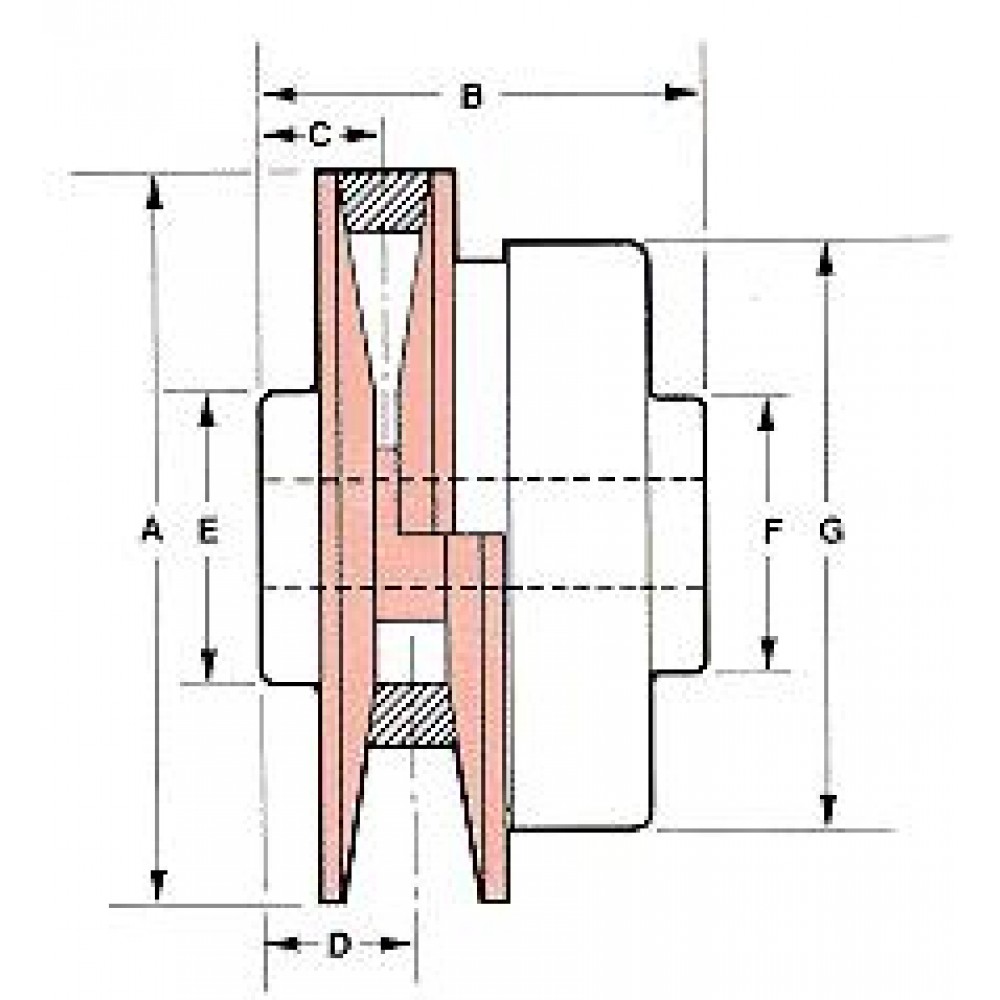

A |
B |
C |
D |
E |
F |
G |
|
0.75 |
0.5 |
27 |
30TBR |
3.13 |
1.57 |
2:1 |
A |
3.38 |
2.69 |
.78 |
.97 |
1.69 |
1.88 |
3.06 |
|
1 |
.75 |
36 |
40TBR |
4.00 |
1.60 |
2.5:1 |
A |
4.25 |
2.69 |
.78 |
.97 |
1.69 |
1.88 |
3.06 |
|
1.5 |
1 |
54 |
50TBR |
4.65 |
1.72 |
2.7:1 |
B |
5.00 |
3.06 |
.78 |
1.01 |
1.88 |
1.88 |
4.06 |
|
2 |
1.5 |
72 |
57-20TBR |
5.40 |
2.16 |
2.5:1 |
B |
5.75 |
3.06 |
.78 |
1.01 |
1.88 |
1.88 |
4.06 |
|
3 |
2 |
108 |
57TBR |
5.40 |
2.16 |
2.5:1 |
B |
5.75 |
3.88 |
1.09 |
1.33 |
2.44 |
2.25 |
5.07 |
|
5 |
3 |
180 |
66TBR |
6.20 |
3.10 |
2:1 |
B |
6.63 |
3.88 |
1.09 |
1.33 |
2.31 |
2.25 |
5.07 |
|
5 |
3 |
180 |
86TBR |
8.28 |
5.17 |
1.6:1 |
B |
8.63 |
3.88 |
1.09 |
1.33 |
2.44 |
2.25 |
5.07 |
