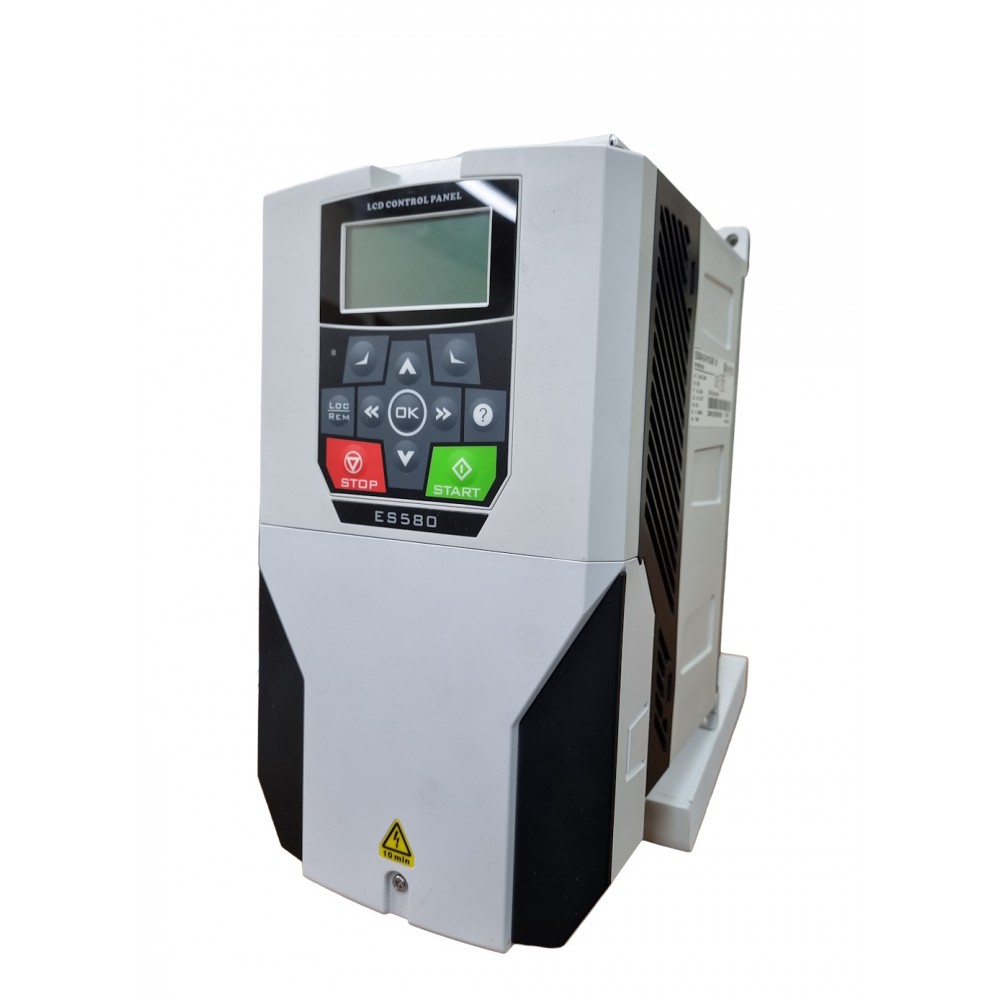

TECHTOP VARIABLE SPEED DRIVE ES580

TECHTOP VARIABLE SPEED DRIVE ES580

Home » PRODUCTS » VARIABLE SPEED DRIVES & SOFT STARTERS » AC VARIABLE SPEED DRIVES » ES SERIES - TECHTOP » TECHTOP VARIABLE SPEED DRIVE ES580
0 reviews 0 reviews
$ Enquire
Enquire
Brand: TECHTOP
Product Code: TECHTOP-VSD-580

High reliability (Powful protection , Standard IP41(4-22KW), Built-in EMC filter, Independent cooling air duct, Wide voltage range (±20%))

High performance (Built-in CANopen / Modbus / PID / simple PLC / breaking unit(0.37-30KW), Profibus-DP ; suitable for Asynchronous & Synchronous motor ; 0-500Hz(Vector control )、0-1000Hz (V/F control ),Timing control ，AVR , Intelligent temperature control , Multi-motor  synchronization switching, Speed accuracy ±0.5% (SVC),Speed range 1:200(SVC) ,Start torque 200%@0.25Hz(SVC), Frequency range 0-500Hz(SVC), 0-1000Hz (V/F))

More friendly (Intelligent assistant LCD operation panel )

Power range (1~phase 220V  0.75 - 2.2Kw ;  3~phase 380/440/500V  0.75 - 630Kw ;  3-phase 660/690V  15 - 1400KW  )

Power range

  3AC 380V (-15%~+30%) 0.75~560KW

Frequency

  Input: 50/60Hz ± 5%

  Output: 0~500HZ (SVC), 0-1000HZ (V/F)

Control mode

  V/F, SVC (Sensorless Vector Control)

Starting torque

  0.25Hz/200%

Keypad

  LCD  built in

Reactor

  DC Reactor built in (F3-F9 Frame)

Others
  •   AUTO PID function,
  •   Modbus, Can open ports  built in ,
  •   Protection Class: IP40 (F1-F3 Frame)
  •   PLC Logic Control
  •   Motor Overheat Protection

Application

  HVAC, Machine Tool, Printing, Plastic
