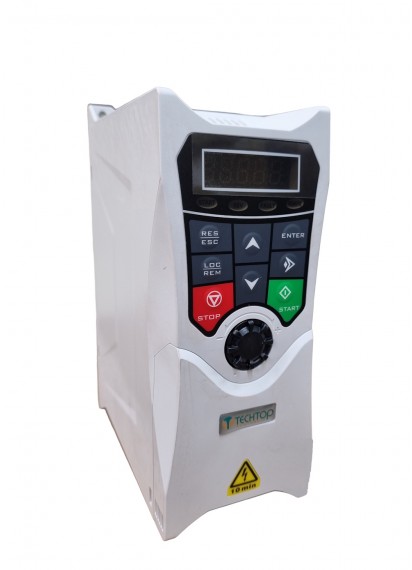

TECHTOP VARIABLE SPEED DRIVE ES355

0 reviews

$ Enquire

Brand: TECHTOP
Product Code: TECHTOP_VSD_355

Description Shipping

Target market

Food Machinery 、Textile machinery 、Small water pump、Packaging Machinery 、food processing、Wood carving、

Blower 、Logistics machinery 、Electronics 、manufacturingetc.

Performance

1)Standard configuration STO safety torque off function

2)Support SVC/ scalar control

3)Support permanent magnet synchronous motor/asynchronous motor control

4)Standard C3 filter

5)Large screen LCD or LED keyboard can be connected externally

6)All DI terminals both support PNP & NPN input, DI4 supports 60kHz high-speed input

7)Standard configuration of magnetic flux braking function

8)The carrier frequency can be adjusted intelligently according to the temperature

Power range	1AC 220V (-15%~+30%) 0.4~2.2kW 3AC 380V (-15%~+30%) 0.75~4kW
Frequency	Input: 50/60Hz ± 5%
Frequency	Output: 0~100HZ (SVC)
Control mode	V/F, SVC (Sensorless Vector Control)
Starting torque	0.25Hz/200%
Keypad	LED built in; LCD (Optional)
Others	AUTO PID function, Modbus built in , Protection Class: IP40 (Terminal connection box optional) PLC Logic Control Motor Overheat Protection
Application	HVAC, Packing, Engraving, Ceramic, New Energy

Rated voltage 1ph 220V (adapted to working voltage range 220±15 %)

Model Code	Rated Value（A）	Rated Power(kW）	Power loss（W）	Noise Level（dB）	Air Volume（m3/h）	Dimension
ES355/355L-B0-0K4G-1	2.5	0.4	40	*	*	B0
ES355/355L-B0-0K7G-1	4.5	0.75	65	36	30.6
ES355/355L-B0-1K5G-1	7	1.5	80	&
