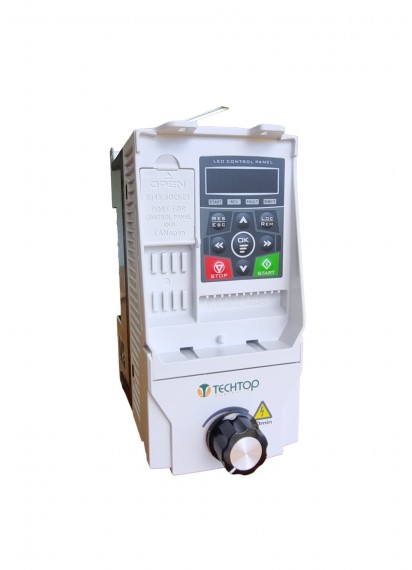

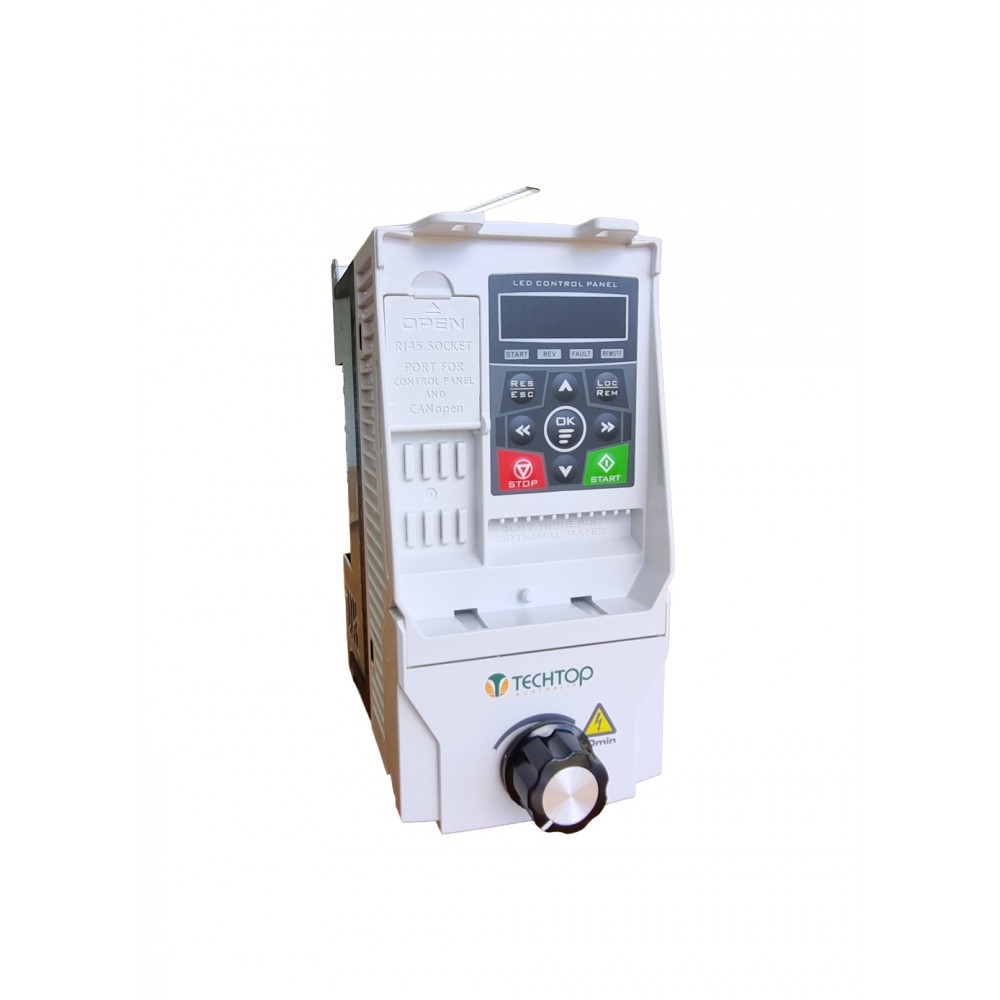

TECHTOP VARIABLE SPEED DRIVE ES350

TECHTOP VARIABLE SPEED DRIVE ES350

Home » PRODUCTS » VARIABLE SPEED DRIVES & SOFT STARTERS » AC VARIABLE SPEED DRIVES » ES SERIES - TECHTOP » TECHTOP VARIABLE SPEED DRIVE ES350
0 reviews 0 reviews
$ Enquire
Enquire
Brand: TECHTOP
Product Code: TECHTOP_VSD_ES350

High reliability (Comprehensive protection , Independent cooling air duct，Wide voltage range (±20%))

High performance (Built-in CANopen / Modbus / PID / breaking unit ; suitable for Asynchronous & Synchronous  motor  ,0-500Hz(Vector control )、0-1000Hz (V/F control ),Timing control )

More friendly (Intelligent assistant LCD operation panel )

Smaller size (W82*H176*D131mm ,endurable metal base mounting )

Power range (3-phase 380V 0.75 - 4 Kw, single -phase 0.75 - 2.2Kw )



Power range

  1AC 220V (-15%~+30%) 0.4~2.2kW

  3AC 380V (-15%~+30%) 0.75~4kW

Frequency

  Input: 50/60Hz ± 5%

  Output: 0~500HZ (SVC), 0-1000HZ (V/F)

Control mode

  V/F, SVC (Sensorless Vector Control)

Starting torque

  0.25Hz/200%

Keypad

  LED  built in; LCD (Optional)

Others
  •   AUTO PID function,
  •   Modbus, Can open ports  built in ,
  •   Protection Class: IP40 ( Terminal    connection box optional)
  •   PLC Logic Control
  •   Motor Overheat Protection

Application

  HVAC, Packing, Engraving, Ceramic, New Energy
