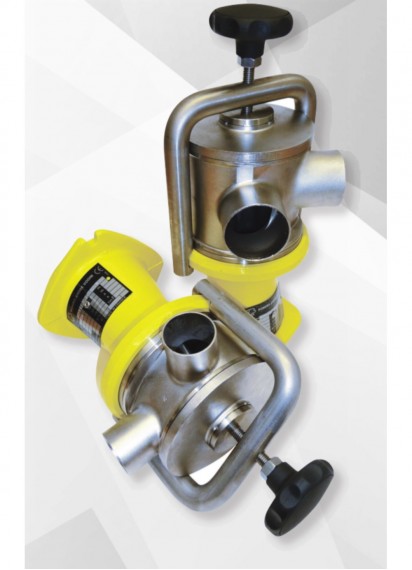

FLEXIBLE IMPELLER PUMP
    FLEXIBLE IMPELLER PUMP FLEXIBLE IMPELLER PUMP

FLEXIBLE IMPELLER PUMP

Home » FLUID HANDLING » PUMPS » FLEXIBLE IMPELLER PUMP
0 reviews 0 reviews
$ Enquire
Enquire
Brand: JOHN BROOKS
Product Code: FLEXIBLE IMPELLER PUMP

The John Brooks range of flexible impeller pumps are manufactured to fulfill the needs of food processing, and have several advantages:

  • Self-priming clockwise and anti-clockwise pumping of viscous and fluid products without stirring or emulsion of the liquid

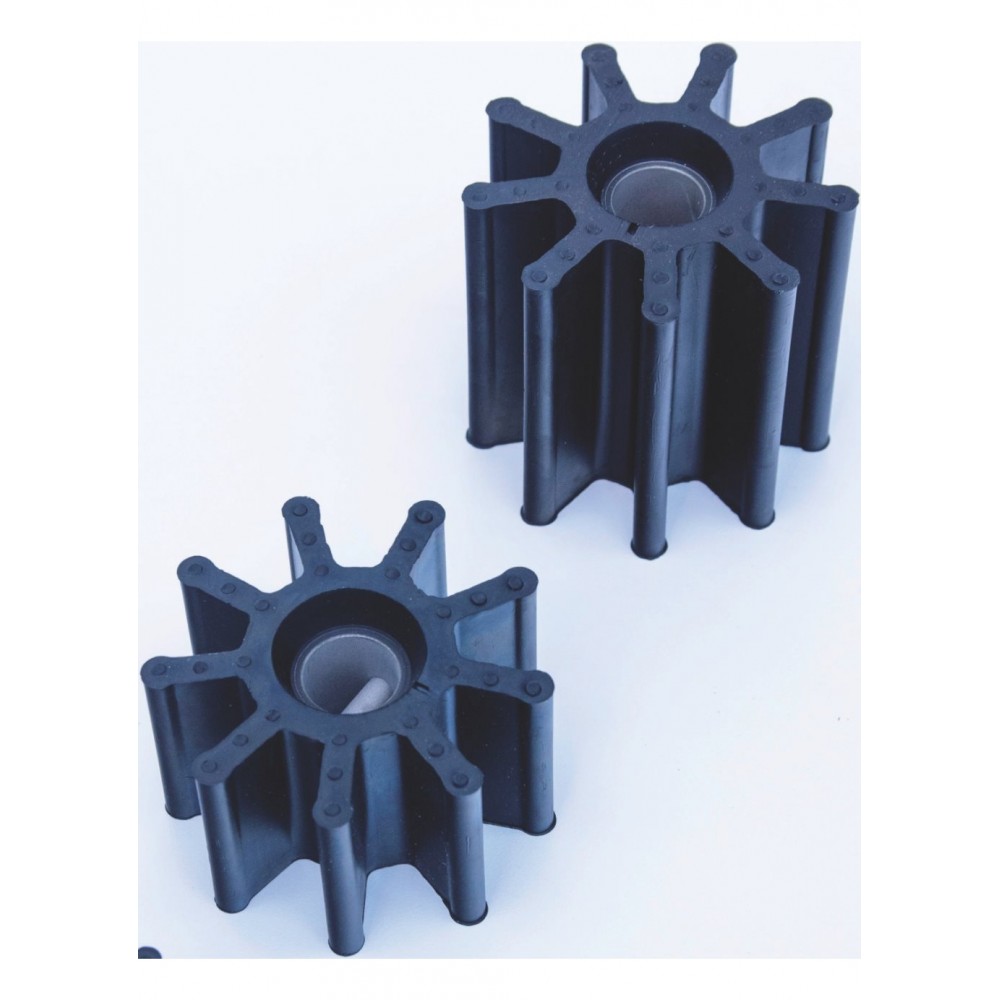

  • Pump head made of 316 stainless steel, and a food-grade rubber impellor
  • Gentle on the liquid it is pumping
  • Pumps run from low speed (250 RPM) all the way up to full speed (1,300 RPM)
  • Positive displacement pump
  • Bypass function attachment, making purging lines easy as well as relieving pressure if recirculating while the pump is going
  • John Brooks Flexibel impellor pumps have a Low sheer pump design that is gentle on the product.
  • Can operate at a wide range of speeds.​
  • A variety of fittings are available to suit connections to popular brewing systems including Tri Clover and RJT.



Flow Rates

Port Size

Power Supply

AC Motor Size

Minimum

500l/hr

1.5”

230V 1PH

0.75kW

Maximum

35,000l/hr

3”

400V 3PH

5.5kW
